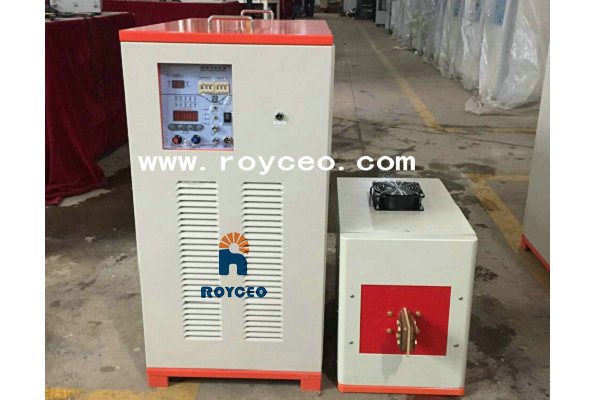

High Frequency 40KW
- Type:DSGP-40
40KW
Application:
1. Machine tool guide quenching;
2. Gear Quenching: sprocket, transmission gear, etc .;
3. Car and motorcycle parts quenching: ball cage, ball head, car shock absorber rod, shift fork and so on;
4. Crane parts quenching: rotating bearing block, rotating bearings, etc .;
5 annealing and tempering: tungsten vacuum annealing;
6. Stainless steel bright annealing: stainless steel bellows, stainless steel straight tube;
7. Standard parts forging heating: bolts, nuts, etc .;
8. Hardware tools forging heating: wrenches, pliers, etc .;
9. Building heating parts forging: construction fasteners, etc .;
10. Gold and silver and other precious metals melting;
11. Alloy tools, saw blade brazing;
Type
Input power
Max output current
Max output power
oscillation Frequency
Load rate
Cooling water
DSGP-16
220V/50-60Hz
15A
7KW
10-45KHz self-adaptive
100%
Water temperature <35 ℃; inlet pressure ≧ 0.3MPa
DSGP-30
380V/50-60Hz
60A
30KW
DSGP-40
80A
40KW
-
-
TypeDSGP-40
-
Working principleElectromagnetic induction heating
-
Max output power40KW
-
Max output current80A
-
Working voltage range380V±10%
-
Input power3×380V/50-60HZ
-
Oscillation frequency10-35KHz
-
Power factor0.95
-
Temperature protection55℃
-
Working efficiency100%
-
Coil materialscopper tube
-
Output power moduleinfineon IGBT
-
Weight40Kg
-
Cooling methodwater cooling
-
Cooling water qualityindustrial pure water or soften water
-
Cooling water pressure≧0.3Mpa
-
Cooling water temperature≦35℃
-
IGBTinfineon
-
Air witchCHINT
-
Rectifier bridgeChangzhou Ruihua
-
A.C contactorCHINT
-
Absorption capacitorCelem
-
Filter capacitorFeitai
-
Resonant capacitorAntai
-
Integrated circuitTI(Texas Instruments)ADI(Analog Devices,lnc.)
-
Optical fiberAvago
-
Low voltage apparatusSchneider Electric
-
Touch screenKinco
-
Magnetic coreXian Sanlian
-
Copper materialLuotong
Power equipment basic parameters
Power main components configuration
-
-
-
