Alloy tool welding

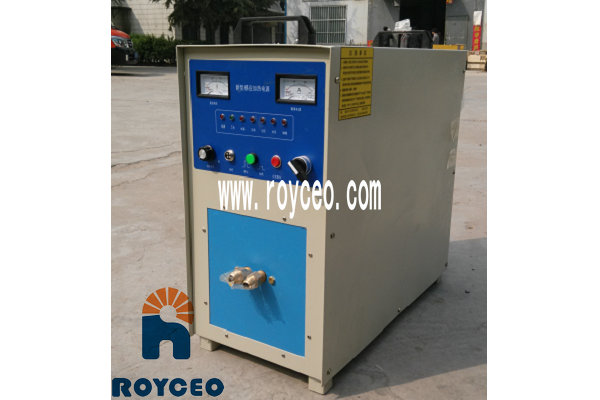

- Type:DSGP-30
- Max output power:30kw
- Max output current:55A

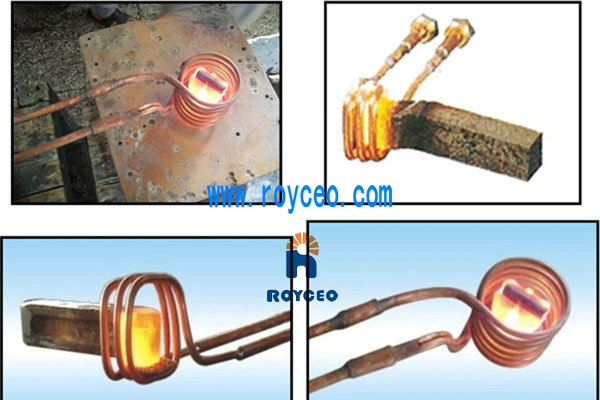

Alloy tool welding
Application:
1. Machine tool guide quenching;
2. Gear Quenching: sprocket, transmission gear, etc .;
3. Car and motorcycle parts quenching: ball cage, ball head, car shock absorber rod, shift fork and so on;
4. Crane parts quenching: rotating bearing block, rotating bearings, etc .;
5 annealing and tempering: tungsten vacuum annealing;
6. Stainless steel bright annealing: stainless steel bellows, stainless steel straight tube;
7. Standard parts forging heating: bolts, nuts, etc .;
8. Hardware tools forging heating: wrenches, pliers, etc .;
9. Building heating parts forging: construction fasteners, etc .;
10. Gold and silver and other precious metals melting;
11. Alloy tools, saw blade brazing;
Production features
1.Using Siemens Infineon IGBT inverter, series / parallel resonant circuit, the conversion efficiency more than 90%.
2.Can adjust the heat insulation process power, time, help to improve the quality of heating and heating repeatability, simplifying the operation of workers.
3.Installation is simple, connect with three-phase 380V power supply, inlet water, outlet water can work.
4.Comparing with the same power level SCR induction heating equipment, IGBT induction heating equipment reduced size by 1/2 and weight by 2/3. Theoretically save more than 15% electric energy. Small footprint, easy to operate.
5.Regardless of the output power, the power factor is always not less than 0.95. 100% startup under any load. With automatic frequency tracking function, the entire process can always ensure high power factor.
6.Replacing the reverberatory furnace, gas furnace, heating without fire, in line with national fire safety regulations.
7. With double closed-loop control function, can speed up the heating at maximum level,and optimize the heating process of metal parts.
8.The entire control system are digital integration, fast action of variety protection , low failure rate of the whole machine, long life.
9.Start fast, can be fully activated in 0.2 seconds , 100% started successfully.
10. Quenching process, the power and CNC machine tools can detect each other start signal, form closed-loop control to prevent inconsistencies start when quenching and affect the consistency of product quality.
-
-
Workpiece nameAlloy tool welding
-
Processing technologybrazing
-
Equipment typeDSGP-30
-
Equipment power30KW
-
Working current range40-45A
-
Working frequency range10-25KHz
-
Workpiece size30×30mm
-
TypeDSGP-30
-
Working principleElectromagnetic induction heating
-
Max output power30KW
-
Max output current60A
-
Working voltage range380V±10%
-
Input power3×380V/50-60HZ
-
Oscillation frequency10-35KHz
-
Power factor0.95
-
Temperature protection55℃
-
Working efficiency100%
-
Coil materialscopper tube
-
Output power moduleinfineon
-
Cooling methodwater cooling
-
Cooling water qualityindustrial pure water or soften water
-
Cooling water pressure≧0.3Mpa
-
Cooling water temperature≦38℃
-
IGBTInfineon
-
Air witchCHINT
-
Rectifier bridgeChangzhou Ruihua
-
A.C contactorCHINT
-
Absorption capacitorCelem
-
Filter capacitorFeitai
-
Resonant capacitorAntai
-
Integrated circuitTI(Texas Instruments) и ADI(Analog Devices,lnc.)
-
Optical fiberAvago
-
Low voltage apparatusSchneider Electric
-
Touch screenKinco
-
Magnetic coreXian Sanlian
-
Copper materialLuotong
Power equipment working parameters
Power equipment basic parameters
Power main components configuration
-
-
-
