Saw Blade welding

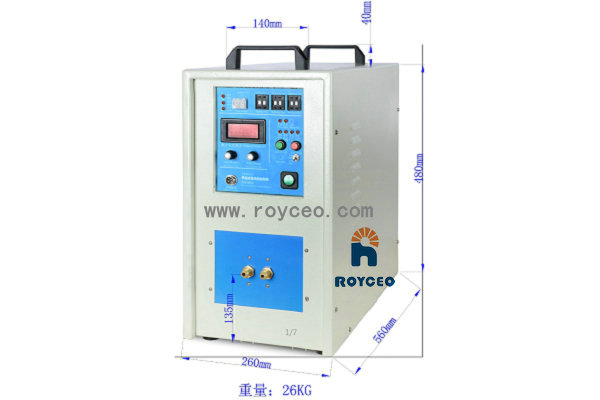

- Type:DSGP-16
- Max output power:7kw
- Max output current:15A
Saw Blade welding
Application:
Such products are most suitable for heating small items, such as:
Welding: used to weld all kinds of hardware tools, diamond saw blade tools including diamond circular saw, abrasive tools, drilling tools, alloy saw blade, carbide turning tool, milling cutter, reamer, planer tool, carpenter drill and so on, silver spot welding.
Heat treatment: small parts heat treatment, band sawing quenching, etc;
Smelting:less 2kg gold, silver,copper smelting, and less 0.5Kg steel, stainless steel, aluminum smelting;
main feature:
1. Using MOSFET power devices and variable current control technology;
2. Equipment structure is simple, price reference;
3. Simple operation, can learn in a few minutes;
4. Easy to install, connecting the electric and water can be used, no need special installation;
5. Over-current, over-voltage, water shortage, lack of phase full display to protect the machine and alarm, easy maintenance;
6. Small, lightweight;
7. easy to replace the different size and shape induction coil to heat different parts;
8. Adjustable heating time , heating power, holding time, holding power under automatic control, is conducive to improving the repeatability of heating quality, simplifying manual operation.
-
-

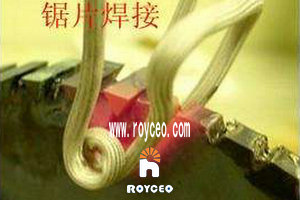

Workpiece nameSaw Blade welding
-
Processing technologybrazing
-
Equipment typeDSGP-16
-
Equipment power16KW
-
Working current range8-12A
-
Working frequency range40-60KHz
-
Workpiece size400mm
-
TypeDSGP-16
-
Working principleElectromagnetic induction heating
-
Max output power7kw
-
Max output current15A
-
Working voltage range220V±10%
-
Input power220V/50-60HZ
-
Oscillation frequency10-35KHz
-
Power factor0.95
-
Temperature protection55℃
-
Working efficiency100%
-
Coil materials99.9%красноМедная труба
-
Output power moduleinfineon
-
Cooling methodwater cooling
-
Cooling water qualityindustrial pure water or soften water
-
Cooling water pressure≧0.3Mpa
-
Cooling water temperature≦38℃
-
IGBTMOSFET
-
Air witchCHINT
-
Rectifier bridgeChangzhou Ruihua
-
A.C contactorCHINT
-
Absorption capacitorCelem
-
Filter capacitorFeitai
-
Resonant capacitorAntai
-
Integrated circuitTI(Texas Instruments) и ADI(Analog Devices,lnc.)
-
Optical fiberAvago
-
Low voltage apparatusSchneider Electric
-
Magnetic coreXian Sanlian
-
Copper materialLuotong
Power equipment working parameters
Power equipment basic parameters
Power main components configuration
-
-
-
1.Oсобые замечаниея технологиев продукцией и соотрудничеств
Порядок работ;Условия поставки:
-
2.How to choose the right induction heating equipment?
Induction heating equipment has two main technical parameters: output power and operating frequency
-
3.How to install and operate induction heating equipment?
We will provide the installation video and detailed Russian English instructions to guide the installation
-
4.Which countries and regions is your machine exported to?
As a specialized factory in the field of induction heating, we are always committed to providing customers with stable and reliable products with quality assurance
-
5.How is your after-sales service?
If necessary, we will send technical personnel for site instruction
-
6.How to extend the service life of Medium Frequency melting furnace?
First of all, when the first use of medium frequency melting furnace, it is necessary to make a lining in medium frequency furnace and sinter it
-
7.The difference between medium frequency induction furnace and resistance furnace
In modern industrial production, for workpiece heating,must do heat treatment, welding, smelting and other processing, each process is essential of product quality
-
