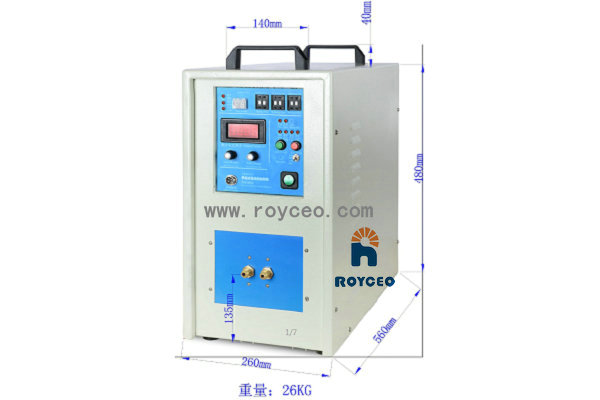

High frequency 16KW
- Type:DSGP-16
16kw
Application:
Such products are most suitable for heating small items, such as:
Welding: used to weld all kinds of hardware tools, diamond saw blade tools including diamond circular saw, abrasive tools, drilling tools, alloy saw blade, carbide turning tool, milling cutter, reamer, planer tool, carpenter drill and so on, silver spot welding.
Heat treatment: small parts heat treatment, band sawing quenching, etc;
Smelting:less 2kg gold, silver,copper smelting, and less 0.5Kg steel, stainless steel, aluminum smelting;
main feature:
1. Using MOSFET power devices and variable current control technology;
2. Equipment structure is simple, price reference;
3. Simple operation, can learn in a few minutes;
4. Easy to install, connecting the electric and water can be used, no need special installation;
5. Over-current, over-voltage, water shortage, lack of phase full display to protect the machine and alarm, easy maintenance;
6. Small, lightweight;
7. easy to replace the different size and shape induction coil to heat different parts;
8. Adjustable heating time , heating power, holding time, holding power under automatic control, is conducive to improving the repeatability of heating quality, simplifying manual operation.
Type
Input power
Max output current
Max output power
oscillation Frequency
Load rate
Cooling water
DSGP-16
220V/50-60Hz
15A
7KW
10-45KHz self-adaptive
100%
Water temperature <35℃; inlet pressure ≧ 0.3MPa
DSGP-30
380V/50-60Hz
60A
30KW
DSGP-40
80A
40KW
-
-
TypeDSGP-16
-
Working principleElectromagnetic induction heating
-
Max output power7kw
-
Max output current15A
-
Working voltage range220V±10%
-
Input power220V/50-60HZ
-
Oscillation frequency30-80KHz
-
Power factor0.95
-
Temperature protection55℃
-
Working efficiency100%
-
Coil materialscopper tube
-
Output power moduleMOSFET
-
Weight20kg
-
Cooling methodwater cooling
-
Cooling water qualityindustrial pure water or soften water
-
Cooling water pressure≧0.3Mpa
-
Cooling water temperature≦35℃
Power equipment basic parameters
-
-
-
