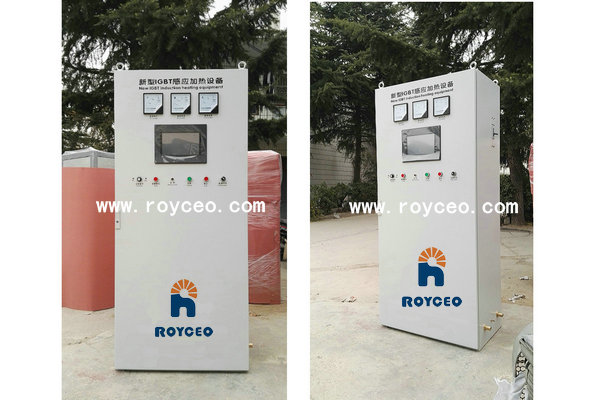

Superaudio Frequency 160KW-300KW
- Type:DSGP-160/DSGP-200/DSGP-250/DSGP-300
- Max output power:160kw/200kw/250kw/300kw
- Max output current:340A/420A/520A/620

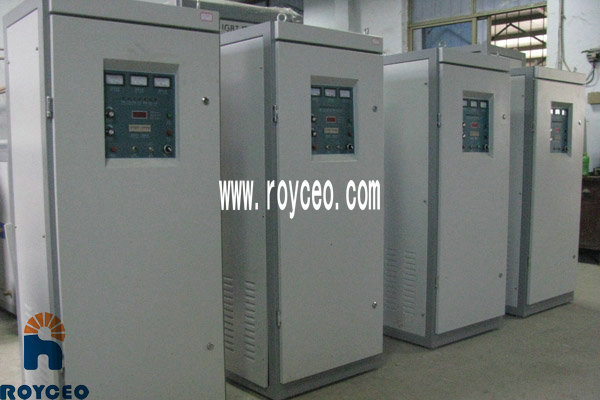

These devices have the same appearance, but the power size is different and the application range is different If you want to know more details, please contact us at the bottom of the website Thank you for your cooperation
These devices have the same appearance, but the power size is different and the application range is different. If you want to know more details, please contact us at the bottom of the website. Thank you for your cooperation.
Application:
1. Machine tool guide quenching;
2. Gear Quenching: sprocket, transmission gear, etc .;
3. Car and motorcycle parts quenching: ball cage, ball head, car shock absorber rod, shift fork and so on;
4. Crane parts quenching: rotating bearing block, rotating bearings, etc .;
5 annealing and tempering: tungsten vacuum annealing;
6. Stainless steel bright annealing: stainless steel bellows, stainless steel straight tube;
7. Standard parts forging heating: bolts, nuts, etc .;
8. Hardware tools forging heating: wrenches, pliers, etc .;
9. Building heating parts forging: construction fasteners, etc .;
10. Gold and silver and other precious metals melting;
11. Alloy tools, saw blade brazing;
Production features
1.Using Siemens Infineon IGBT inverter, series / parallel resonant circuit, the conversion efficiency more than 90%.
2.Can adjust the heat insulation process power, time, help to improve the quality of heating and heating repeatability, simplifying the operation of workers.
3.Installation is simple, connect with three-phase 380V power supply, inlet water, outlet water can work.
4.Comparing with the same power level SCR induction heating equipment, IGBT induction heating equipment reduced size by 1/2 and weight by 2/3. Theoretically save more than 15% electric energy. Small footprint, easy to operate.
5.Regardless of the output power, the power factor is always not less than 0.95. 100% startup under any load. With automatic frequency tracking function, the entire process can always ensure high power factor.
6.Replacing the reverberatory furnace, gas furnace, heating without fire, in line with national fire safety regulations.
7. With double closed-loop control function, can speed up the heating at maximum level,and optimize the heating process of metal parts.
8.The entire control system are digital integration, fast action of variety protection , low failure rate of the whole machine, long life.
9.Start fast, can be fully activated in 0.2 seconds , 100% started successfully.
10. Quenching process, the power and CNC machine tools can detect each other start signal, form closed-loop control to prevent inconsistencies start when quenching and affect the consistency of product quality.
type
input power
DC max output current
max output power
oscillation frequency
load rate
cooling water
DSGP-40
380V/50-60Hz
&380V±10%
90A
40KW
seif-adaption
5-35KHz
100%
Water temperature <35℃; inlet pressure ≧0.3MPa
DSGP-50
110A
50KW
DSGP-60
140A
60KW
DSGP-80
180A
80KW
DSGP-100
220A
100KW
DSGP-120
2460A
120KW
DSGP-160
340A
160KW
DSGP-200
420A
200KW
DSGP-250
520A
250KW
DSGP-300
620A
300KW
-
-
TypeDSGP-200
-
Working principleElectromagnetic induction heating
-
Max output power200KW
-
Max output current420A
-
Working voltage range380V±10%
-
Input power3×380V/50-60HZ
-
Oscillation frequency10-35KHz
-
Power factor0.95
-
Temperature protection55℃
-
Working efficiency100%
-
Coil materialscopper tube
-
Output power moduleinfineon IGBT
-
Weight180KG
-
Power supply cabinet dimension600mm*800mm*1800mm
-
Cooling methodwater cooling
-
Cooling water qualityindustrial pure water or soften water
-
Cooling water pressure≧0.3Mpa
-
Cooling water temperature≦35℃
-
IGBTinfineon
-
Air witchCHINT
-
Rectifier bridgeChangzhou Ruihua
-
A.C contactorCHINT
-
Absorption capacitorCelem
-
Filter capacitorFeitai
-
Resonant capacitorAntai
-
Integrated circuitTI(Texas Instruments)ADI(Analog Devices,lnc.)
-
Optical fiberAvago
-
Low voltage apparatusSchneider Electric
-
Touch screenKinco
-
Magnetic coreXian Sanlian
-
Copper materialLuotong
Power equipment basic parameters
Power main components configuration
-
-
-
